CAM SERIES

Description

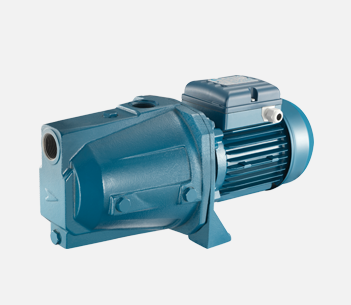

Self-priming centrifugal pump for water supplies (even if mixed with gas) in small household systems, connected to autoclave tanks, for transferring liquids and emptying tanks; also used for gardening
Category:

Share this product

Description

Features
Pump body cast iron
Motor bracket cast iron or aluminium
Impeller Noryl or brass
Mechanical seal ceramic-graphite
Motor shaft stainless steel AISI 416
Liquid temperature 0 – 50 °C
Operating pressure max 6 bar
Motor
2 pole induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz with thermal protection
Insulation class F
Protection degree IP44
Model Q max (m3/h) Hmax (m) Power P2 (HP) Download the PDF
CAM550 2 36 0,60
CAM50 2 36 0,60
CAM575 2 42 0,80
CAM75 2 42 0,80
CAM100 4 47 1,00
CAM110 5 37 1,00
60Hz catalog

Model Q max (m3/h) Hmax (m) Power P2 (HP) Download the PDF
CAM550_60HZ 2 36 0,60
CAM50_60HZ 2 36 0,60
CAM575_60HZ 2 42 0,80
CAM75_60HZ 2 42 0,80
CAM100_60HZ 4 47 1,00
CAM110_60HZ 5 37 1,00
