Product Details
CAM100N-140
Description

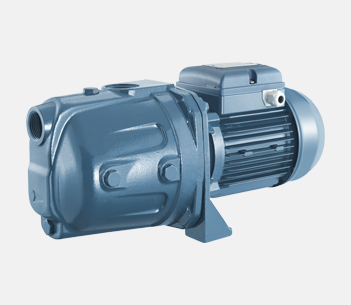

Self-priming centrifugal pump for water supplies (even if mixed with gas) in small household systems, connected to autoclave tanks, for transferring liquids and emptying tanks; also used for gardening.
Description
Features | |
Pump body | cast iron |
Motor bracket | cast iron |
Impeller | Noryl or brass |
Mechanical seal | ceramic-graphite |
Motor shaft | stainless steel AISI 416 |
Liquid temperature | 0 – 50 °C |
Operating pressure | max 7 bar |
Motor | |
2 pole induction motor | 3~ 230/400V-50Hz 1~ 230V-50Hz with thermal protection |
Insulation class | F |
Protection degree | IP44 |
Model | Q max (m3/h) | Hmax (m) | Power P2 (HP) | Download the PDF |
CAM100N | 4 | 44 | 1,00 | |
CAM120 | 4 | 48 | 1,20 | |
CAM140 | 4 | 56 | 1,50 |
Model | Q max (m3/h) | Hmax (m) | Power P2 (HP) | Download the PDF |
CAM100N_60HZ | 4 | 44 | 1,00 | |
CAM120_60HZ | 4 | 48 | 1,20 | |
CAM140_60HZ | 4 | 56 | 1,50 |
