Product Details

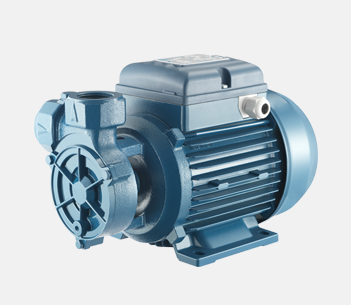

CP SERIES
Description
Peripheral positive displacement pumps with side suction for small household systems and simple industrial applications; characterised by a considerable ratio between performance and required output; frontal brass insert avoiding the risk of blockage.
Description
Features | |
Pump body | cast iron and brass |
Motor bracket | cast iron |
Impeller | brass |
Mechanical seal | ceramic-graphite |
Motor shaft | stainless steel AISI 416 |
Liquid temperature | 0 – 90 °C |
Operating pressure | max 8 bar |
Motor | |
2 pole induction motor | 3~ 230/400V-50Hz 1~ 230V-50Hz with thermal protection |
Insulation class | F |
Protection degree | IP44 |
Model | Q max (m3/h) | Hmax (m) | Power P2 (HP) | Download the PDF |
CP45 | 2 | 35 | 0,50 | |
CP75 | 3 | 61 | 1,00 |
60Hz catalog
Model | Q max (m3/h) | Hmax (m) | Power P2 (HP) | Download the PDF |
CP45_60HZ | 2 | 35 | 0,50 | |
CP75_60HZ | 3 | 61 | 1,00 |
