Product Details

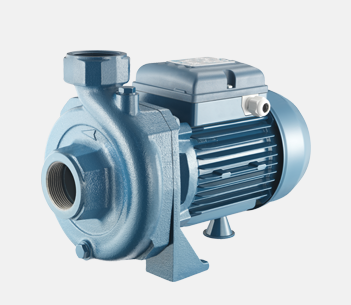

CS SERIES

Description

Single impeller centrifugal pumps, medium sliding high delivery with 2″, 3″ and 4″ delivery openings; mainly used in agriculture and applications requiring high level delivery.”
Category:

Share this product

Description

Features
Pump body cast iron
Motor bracket cast iron
Impeller cast iron / brass
Mechanical seal ceramic-graphite
Motor shaft stainless steel AISI 303,
stainless steel AISI 416 (CS 75-100)
Liquid temperature 0 – 90 °C
Operating pressure max 6 bar
Motor
2 pole induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz with thermal protection
Insulation class F
Protection degree IP44
