Product Details

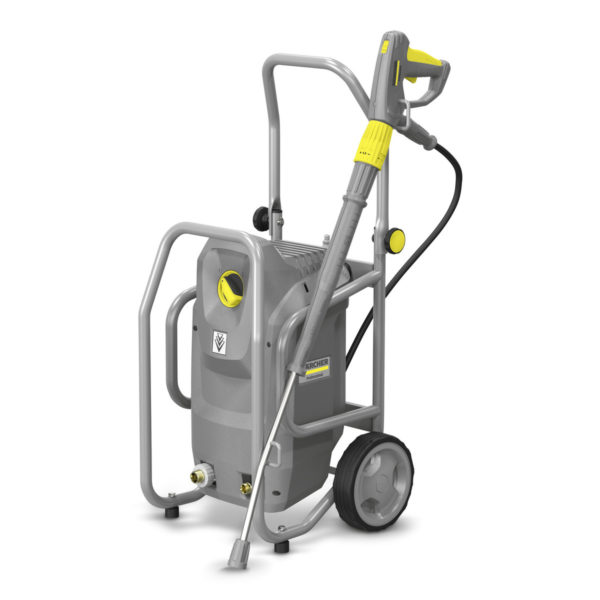

HD 7/16-4 M Cage

Equipment

  • Spray gun, EASY!Force
  • High-pressure hose, 10 m
  • Spray lance, 840 mm
  • Power nozzle
  • Pressure cut-off
  • Servo Control
Category:

Share this product

Description

Our HD 7/16-4 Cage ST high-pressure cleaner with 4-pole slow-running three-phase motor features impressive high-quality equipment and a highly robust cage design with a powder-coated steel tubular frame. Intelligent features such as the Servo Control function for controlling the water volume (up to 700 l/h) and working pressure (up to 160 bar) make working with this mobile, unheated machine significantly easier. The extremely service-friendly HD 7/16-4 Cage ST also impresses with its long-lasting 3-piston axial pump with brass cylinder head, which enables 20% higher cleaning performance and energy efficiency. The machine can be used in both a horizontal and vertical position, and is also equipped with an automatic pressure relief feature to protect the high-pressure components. Other equipment featured as standard includes the EASY!Force high-pressure gun, which utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, and the EASY!Lock quick-release couplings, which enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity.

Technical data

Current type (Ph/V/Hz) 3 / 400 / 50
Flow rate (l/h) 350 – 700
Working pressure (bar/MPa) 30 / 160 / 3 / 16
Max. pressure (bar/MPa) 240 / 24
Connection load (kW) 4,2
Power cable (m) 5
Weight (kg) 43,1
Dimensions (L × W × H) (mm) 420 x 460 x 970
