Product Details

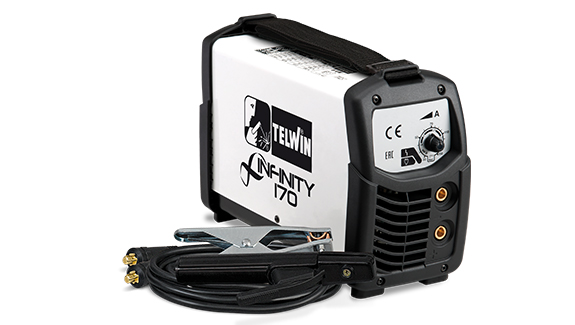

INFINITY 170

INFINITY 170 230V ACX

code 816124

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
– compact and light
– high welding current stability in spite of mains voltage fluctuations
– arc force, hot start and anti-stick devices
– thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories.

Category:

Share this product

Description

INFINITY 170 230V ACX

code 816124

CODE 816124
MOTORGENERATOR MINIMUM POWER 6 kW
SINGLE PHASE MAINS VOLTAGE 230 V
MAINS FUSE 16 A
MAINS FREQUENCY 50 / 60 Hz
EFFICIENCY 87 %
CURRENT RANGE 20 – 150 A
POWER FACTOR (cosphi) 0,7
MAX CURRENT 140 A – 25 %
D. USABLE ELECTRODES IN DC 1,6 – 4 mm
CURRENT AT 60% 80 A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 75 V
DIMENSIONS 35,5 – 14,5 – 24 cm
MAX ABSORBED CURRENT 28 A
WEIGHT 4,94 kg
ABSORBED CURRENT AT 60% – MAX 14 A
EAN CODE 800489712224 3
MAX ABSORBED POWER 4,5 kW
PIECES/PALLET 56 pz/pallet
ABSORBED POWER AT 60% 2 kW
PIECES/PALLET – B 48 pz/pallet – B
