Product Details

JMC SERIES

Description

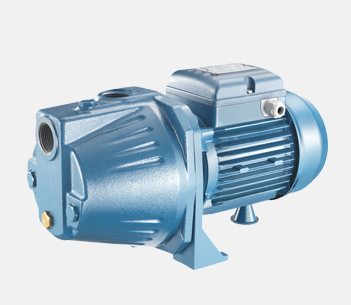

Self-priming centrifugal pump for water supplies (even if mixed with gas) in small household systems, connected to autoclave tanks, for transferring liquids and emptying tanks; also used for gardening.
Category:

Share this product

Description

Features
Pump body cast iron
Motor bracket cast iron or aluminium
Impeller Noryl or brass
Mechanical seal ceramic-graphite
Motor shaft stainless steel AISI 416
Liquid temperature 0 – 50 °C
Operating pressure max 6 bar
Motor
2 pole induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz with thermal protection
Insulation class F
Protection degree IP44
Model Q max (m3/h) Hmax (m) Power P2 (HP) Download the PDF
JMRC80 2 35 0,80
JMC80 2 40 0,80
JMC100 3 44 1,00
Model Q max (m3/h) Hmax (m) Power P2 (HP) Download the PDF
JMRC80_60HZ 2 35 0,80
JMC80_60HZ 2 40 0,80
JMC100_60HZ 3 44 1,00
