Product Details

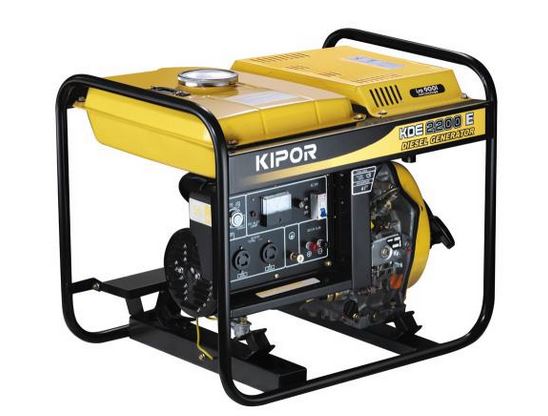

KDE2200E

  • Low running noise
  • Advanced alternator winding
  • Digital control panel
  • Low oil alarm system
  • Application of new AVR
  • Strong power
Category:

Share this product

Description

OVERVIEW

KIPOR always develops products from the customer’s point of view. To facilitate operation, KIPOR equips its generator with a user-friendly control panel as well as provisions of a KIPOR automatic transfer switch. The new series of generator sets feature the following benefits:

The digital control panel can be applied to dual voltage, single phase and three phase generator sets. When utility power fails, a KIPOR automatic transfer switch senses the loss of power and immediately starts the generator. Once utility power is restored, the transfer switch shifts your electric load back to utility power and shuts off the generator.

The automatic transfer switch exercises the generator weekly to ensure it is always in working order, and it can be mounted inside the generator or attached as an optional accessory. Most generators in this series are equipped with brushless alternators which establish stable voltage in a minimum amount of time. The generator set maintains smooth and quality output.

Generator set
Rated frequency 50 Hz or 60 Hz
Rated output 50 Hz: 1.7 kWA 60 Hz: 2.0 kWA
Max.output 50 Hz: 2.0 kWA 60 Hz: 2.2 kWA
Rated voltage 115/230 V or 120/240 V
Engine
Engine type KM170FG
Displacement 0.296 L
Starter system Electric system
Genset
Noise level(7m) 77 dB(A)
Fuel tank capacity 13.5 L
Overall dimensions 640 x 480 x 530 mm
Dry weight 60 kg
