Product Details
MD SERIES
Description

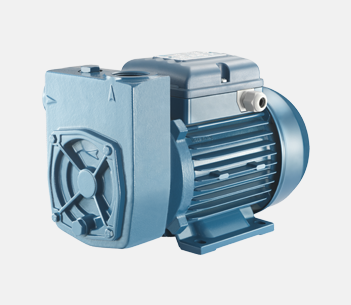

Liquid ring positive displacement pump with star impeller that gives considerable suction power to the pump. Particularly suitable for liquid transfer (including volatile liquids). The model has a frontal brass closing thus avoiding the risk of blockage.
Description
| Features | |
| Pump body | cast iron and brass |
| Motor bracket | cast iron |
| Impeller | brass |
| Mechanical seal | ceramic-graphite |
| Motor shaft | stainless steel AISI 416 |
| Liquid temperature | 0 – 90 °C |
| Operating pressure | max 8 bar |
| Motor | |
| 2 pole induction motor | 3~ 230/400V-50Hz 1~ 230V-50Hz with thermal protection |
| Insulation class | F |
| Protection degree | IP44 |
| Model | Q max (m3/h) | Hmax (m) | Power P2 (HP) | Download the PDF |
| MD75 | 3 | 46 | 0,80 | |
| MD100 | 3 | 53 | 1,00 |
| Model | Q max (m3/h) | Hmax (m) | Power P2 (HP) | Download the PDF |
| MD75_60HZ | 3 | 46 | 0,80 | |
| MD100_60HZ | 3 | 53 | 1,00 |
