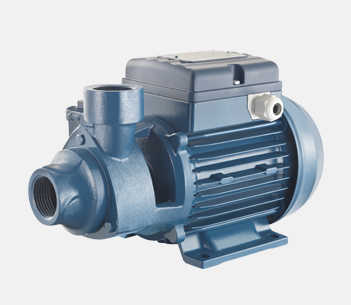

PM45

Peripheral positive displacement pumps with frontal pumps for small household systems and simple industrial applications; characterised by a considerable ratio between performance and required output.PM45

Category:

Share this product

Description

Features
Pump body cast iron, bronze
Motor bracket cast iron or bronze
Impeller brass
Mechanical seal ceramic-graphite
Motor shaft stainless steel AISI 416
Liquid temperature 0 – 90 °C
Operating pressure max 6 bar,
max 8 bar,
max9 bar
Motor
2 pole induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz with thermal protection
Insulation class F
Protection degree IP44
Model Q max (m3/h) Hmax (m) Power P2 (HP) Download the PDF
PM45 2 35 0,50
PM45BR 2 35 0,50
PM45A 2 35 0,50
PM65 3 49 0,70
PM65A 3 49 0,70
PM80 3 61 1,00
PM80A 3 61 1,00
PM90 2 79 1,00
